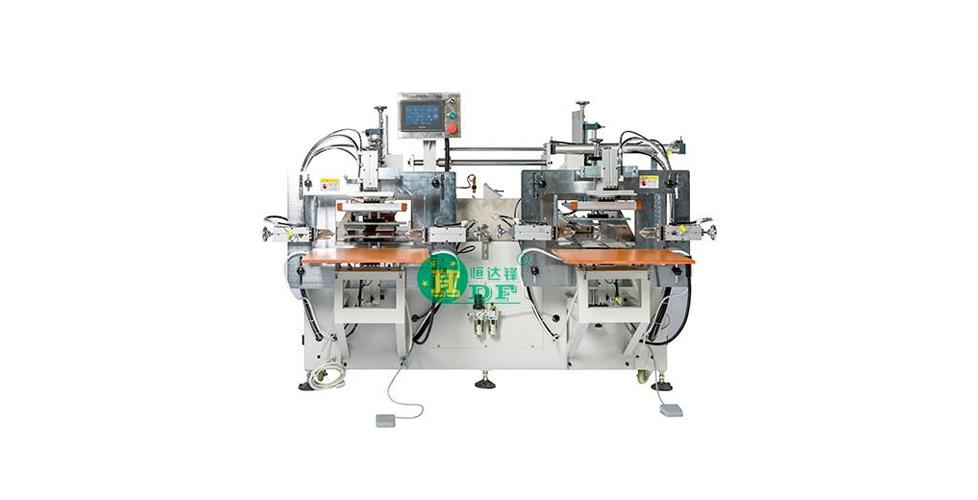

800-S1 雙頭成人護理墊寵物墊包裝機
性能與特點：Performance and feature：1、本機用于成人護理墊、床墊、嬰兒護理墊、寵物墊等裝袋封口的半自動包裝機，入袋方式為平放.It is used for packing adult/baby underpads,pet training pads etc. The bagging way is flat.2、采用 PLC 電腦編程控制，觸摸屏顯示參數設置參數；PLC computer programming control, L…
產品介紹:
性能與特點：
Performance and feature：
1、本機用于成人護理墊、床墊、嬰兒護理墊、寵物墊等裝袋封口的半自動包裝機，入袋方式為平放.
It is used for packing adult/baby underpads,pet training pads etc. The bagging way is flat.
2、采用 PLC 電腦編程控制，觸摸屏顯示參數設置參數；
PLC computer programming control, LCD displays and adjusts parameters.
3、本機 3 個人操作，可以同時交叉包裝兩種規格，降低企業制造成本與生產空間；
It is operated by 3 persons, and can cross-package two specifications at the same time, which reduces the production space and cost.
4、可選用雙機頭/單機頭操作；包裝封口效果美觀，整齊，控制定位準確；
It can be choose with double head or single head; the package is beautiful, neat and precisely.
5、整機結構合理，性能穩定，帶水冷保護發熱絲，發熱絲和耐高溫膠布經久耐用；
It has reasonable structure, stable performance, with water-cooled heat wire protection, make the heating wire and high temperature resistant adhesive durable.
6、先感應后工作，工人操作更安全；
Induction before working , more safe to operate.
7、同一臺機可包裝各種規格產品.
Can be used for various products packaging.
Performance and feature：
1、本機用于成人護理墊、床墊、嬰兒護理墊、寵物墊等裝袋封口的半自動包裝機，入袋方式為平放.
It is used for packing adult/baby underpads,pet training pads etc. The bagging way is flat.
2、采用 PLC 電腦編程控制，觸摸屏顯示參數設置參數；
PLC computer programming control, LCD displays and adjusts parameters.
3、本機 3 個人操作，可以同時交叉包裝兩種規格，降低企業制造成本與生產空間；
It is operated by 3 persons, and can cross-package two specifications at the same time, which reduces the production space and cost.
4、可選用雙機頭/單機頭操作；包裝封口效果美觀，整齊，控制定位準確；
It can be choose with double head or single head; the package is beautiful, neat and precisely.
5、整機結構合理，性能穩定，帶水冷保護發熱絲，發熱絲和耐高溫膠布經久耐用；
It has reasonable structure, stable performance, with water-cooled heat wire protection, make the heating wire and high temperature resistant adhesive durable.
6、先感應后工作，工人操作更安全；
Induction before working , more safe to operate.
7、同一臺機可包裝各種規格產品.
Can be used for various products packaging.
技術參數:
|
包裝速度 Packing speed |
15-20 包/分鐘 15-20bags/min |
|
電源電壓 Power supply |
220V，50HZ |
|
氣源電壓 Air pressure |
0.6MPA(客戶自備) 0.6MPA(self prepare) |
|
總功率 Total power |
0.4KW |
|
包裝尺寸 Packing size (mm) |
長：100-200/200-400寬：100-200/200-360高：50-160（按樣品定制） Length 100-200/200-400×Width 100-200/200-360×Height 50-160, Customized on your sample |
|
機器尺寸 Dimension (mm) |
長3600×寬2100×高1500 mm Length 3600 × Width 2100 × Height 1500 mm |
|
重量 Weight |
500KG |
